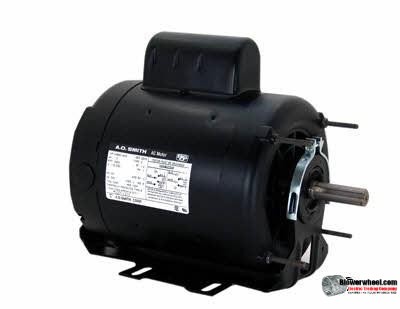

Electric Motor - Capacitor Start - AO Smith - C426V1 -3/4 hp 1725 rpm 115/208-230VAC volts


Electric Motor - Capacitor Start - AO Smith - C426V1 -3/4 hp 1725 rpm 115/208-230VAC volts

SKU# C426V1-041-Q1

Be the first to review this product

Electric Motor - Capacitor Start - AO Smith - C426V1 3/4 hp 1725 rpm 115/208-230VAC volts 11.0 /5.4 /5.5 amps 60 hz
$528.71
Electric Motor - Capacitor Start - AO Smith - C426V1 -3/4 hp 1725 rpm 115/208-230VAC volts is available for purchase in increments of 1
  In Stock for Immediate Shipment


Details

Electric Motor - Capacitor Start - AO Smith - C426V1 3/4 hp 1725 rpm 115/208-230VAC volts 11.0 /5.4 /5.5 amps 60 hz
Name Electric Motor - Capacitor Start - AO Smith - C426V1 -3/4 hp 1725 rpm 115/208-230VAC volts
Sub Category Compressors, pumps, conveyors, milking machines, blowers, and fans
Main Category Electric Motors
Company I.D. 041
SKU C426V1-041-Q1
Manufacturer AO Smith
Etc Id elecmtr-111000
ET Part # C426V1
Product Type Capacitor Start
Condition Sold As New Factory Carton
Case Count 1
Weight 27.1000
Price $528.71
Dimensional Weight - Shipping (lbs) 12.43
Volume - Shipping Carton - Cu in 1728
Girth - Shipping Carton 48
Height - Shipping Carton 12
Horsepower 3/4
Hz 60
Enclosure Open Dripproof
Amps 11.0 /5.4 /5.5
Model # C426V1
Overload Protection Auto
RPM 1725
Duty Rating Continuous
Rotation Rotation Reversible
Voltage 115/208-230VAC
Phase 1
Stud Pattern 4-1/8 x 4-1/8"
Ring to Ring C-C 8-11/16"
Resilient Ring Diameter 2-1/2"
Shaft Diameter 5/8"
NEMA Frame Size 56
Shaft Length 1-7/8"
Shaft Features Keyed-Resilient Base
Service Factor 1.25
