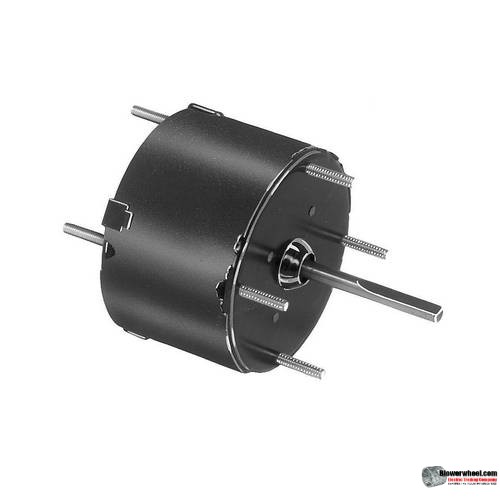

Double click on above image to view full picture

Electric Motor - General Purpose - Fasco - D601 -2.7 watts 1500 rpm 120VAC volts

SKU# D601-050-Q1

Electric Motor - General Purpose - Fasco - D601 1/50 hp 1500 rpm 120VAC volts 0.9 amps 60 hz

$76.00

Electric Motor - General Purpose - Fasco - D601 -2.7 watts 1500 rpm 120VAC volts is available for purchase in increments of 1

Qty: Standard Lead Time

Email to a Friend

Details

Electric Motor - General Purpose - Fasco - D601 1/50 hp 1500 rpm 120VAC volts 0.9 amps 60 hz

Name	Electric Motor - General Purpose - Fasco - D601 -2.7 watts 1500 rpm 120VAC volts
Sub Category	Single Blower Motor
Main Category	Electric Motors
Company I.D.	050
SKU	D601-050-Q1
Manufacturer	Fasco
Etc Id	elecmtr-116900
ET Part #	D601
Condition Sold As	New Factory Carton
Case Count	1
Weight	2.0000
Price	$76.00
Dimensional Weight - Shipping (lbs)	1.03597122302158
Volume - Shipping Carton - Cu in	144
Girth - Shipping Carton	16
Height - Shipping Carton	4
Price Includes Shipping	no
Horsepower	1/50
Hz	60
Enclosure	TEAO
Amps	0.9
Model #	D601
Overload Protection	Auto
RPM	1500
Rotation	CCW Shaft end
Voltage	115VAC
Phase	1
Shaft Diameter	1/4"
Product Weight	1.94
Shaft Length	2-1/4"
Service Factor	1
