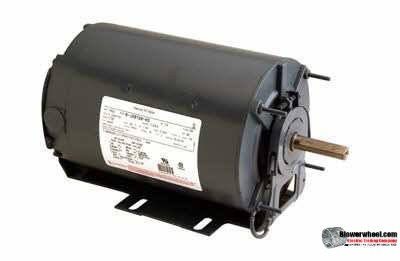

Electric Motor - Split Phase - AO Smith - F501 -1/2 hp 1725 rpm 115 volts


Electric Motor - Split Phase - AO Smith - F501 -1/2 hp 1725 rpm 115 volts

SKU# F502-041-Q1

Be the first to review this product

Electric Motor - Split Phase - AO Smith - F502 1/2 hp 1725 rpm 115 volts 3.5/7.0 amps 60 hz
$367.59
  Standard Lead Time


Details

Electric Motor - Split Phase - AO Smith - F502 1/2 hp 1725 rpm 115 volts 3.5/7.0 amps 60 hz
Name Electric Motor - Split Phase - AO Smith - F501 -1/2 hp 1725 rpm 115 volts
Sub Category Belt Drive,Blowers, Fans and Centrifugal Pumps
Main Category Electric Motors
Company I.D. 041
SKU F502-041-Q1
Manufacturer AO Smith
Etc Id elecmtr-117900
ET Part # F502
Product Type Split Phase
Condition Sold As New Factory Carton
Case Count 1
Weight 32.0000
Price $367.59
Dimensional Weight - Shipping (lbs) 12.431654676259
Volume - Shipping Carton - Cu in 1728
Girth - Shipping Carton 48
Height - Shipping Carton 12
Horsepower 1/2
Hz 60
Enclosure TEAO
Amps 3.5/7.0
Model # F501
Overload Protection Auto
RPM 1725
Duty Rating Continuous
Rotation Rotation Reversible
Voltage 115/230VAC
Phase 1
Shaft Diameter 5/.8"
Product Weight 25
NEMA Frame Size J56
Shaft Length 1-47/50"
Service Factor 1
