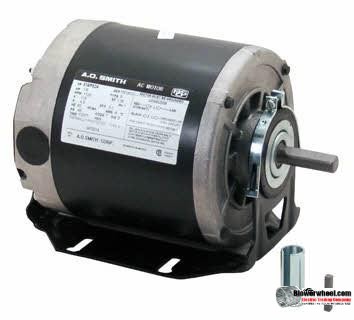

Electric Motor - Split Phase - AO Smith - GF2024 -1/4 hp 1725 rpm 115VAC volts


Electric Motor - Split Phase - AO Smith - GF2024 -1/4 hp 1725 rpm 115VAC volts

SKU# GF2024-041-Q1

Be the first to review this product

Electric Motor - Split Phase - AO Smith - GF2024 1/4 hp 1725 rpm 115VAC volts 5.4 amps 60 hz
$194.31
Electric Motor - Split Phase - AO Smith - GF2024 -1/4 hp 1725 rpm 115VAC volts is available for purchase in increments of 1
  Standard Lead Time


Details

Electric Motor - Split Phase - AO Smith - GF2024 1/4 hp 1725 rpm 115VAC volts 5.4 amps 60 hz
Name Electric Motor - Split Phase - AO Smith - GF2024 -1/4 hp 1725 rpm 115VAC volts
Sub Category Belt Drive,Blowers, Fans and Centrifugal Pumps
Main Category Electric Motors
Company I.D. 041
SKU GF2024-041-Q1
Manufacturer AO Smith
Etc Id elecmtr-104700
ET Part # GF2024
Product Type Split Phase
Condition Sold As New Factory Carton
Case Count 1
Weight 14.4000
Price $194.31
Dimensional Weight - Shipping (lbs) 7.19
Volume - Shipping Carton - Cu in 1000
Girth - Shipping Carton 40
Height - Shipping Carton 10
Horsepower 1/4
Hz 60
Enclosure Open Dripproof
Amps 5.4
Model # GF2024
Overload Protection Auto
RPM 1725
Duty Rating Continuous
Rotation Rotation Reversible
Voltage 115VAC
Phase 1
Ring to Ring C-C 7-3/16"
Resilient Ring Diameter 2-1/2"
Shaft Diameter 1/2"
NEMA Frame Size 48
Shaft Length 1-1/2"
Shaft Features Flatted
Service Factor 1.35
