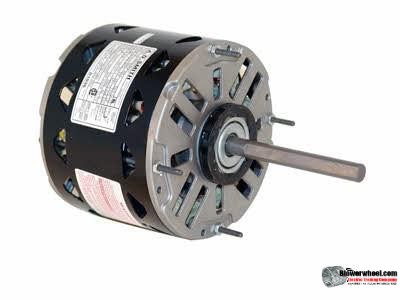

Electric Motor - 5-5/8" Diameter - AO Smith - DL1076 -3/4 hp 1075 rpm 115VAC volts


Electric Motor - 5-5/8" Diameter - AO Smith - DL1076 -3/4 hp 1075 rpm 115VAC volts

SKU# DL1076-041-Q1

Be the first to review this product

Electric Motor - 5-5/8" Diameter - AO Smith - DL1076 3/4 hp 1075 rpm 115VAC volts 8.9 amps 60 hz
$128.77
  Standard Lead Time


Details

Electric Motor - 5-5/8" Diameter - AO Smith - DL1076 3/4 hp 1075 rpm 115VAC volts 8.9 amps 60 hz
Name Electric Motor - 5-5/8" Diameter - AO Smith - DL1076 -3/4 hp 1075 rpm 115VAC volts
Sub Category Indoor Blower Motors- Direct Drive Furnace Blowers, Unit Heaters, Air Conditioners, Many Other Shaft Mounted Fan and Blower Uses
Main Category Electric Motors
Company I.D. 041
SKU DL1076-041-Q1
Manufacturer AO Smith
Etc Id elecmtr-109500
ET Part # DL1076
Product Type Diameter
Condition Sold As New Factory Carton
Case Count 1
Weight 19.0000
Price $128.77
Dimensional Weight - Shipping (lbs) 12.43
Volume - Shipping Carton - Cu in 1728
Girth - Shipping Carton 48
Height - Shipping Carton 12
Horsepower 3/4
Hz 60
Enclosure Open Air-Over
Amps 8.9
Model # DL1076
Overload Protection Auto
RPM 1075
Duty Rating Continuous
Rotation Rotation Reversible
Voltage 115VAC
Stud Size #8-32 x 1-5/8"
Phase 1
Stud Pattern 3-5/8 x 3-5/8"
Ring to Ring C-C 6-3/16"
Resilient Ring Diameter 2-1/4"
Shaft Diameter 1/2"
NEMA Frame Size 48Y
Shaft Length 4"
Shaft Features Flatted-2-1/4" rings with 2-1/2" adapters included
Service Factor 1
